VISCA Pelco PTZ Conference Camera Joystick Controller Vmix PTZ Console

  • VISCA Pelco PTZ Conference Camera Joystick Controller Vmix PTZ Console
  • VISCA Pelco PTZ Conference Camera Joystick Controller Vmix PTZ Console
  • VISCA Pelco PTZ Conference Camera Joystick Controller Vmix PTZ Console
  • VISCA Pelco PTZ Conference Camera Joystick Controller Vmix PTZ Console
  • VISCA Pelco PTZ Conference Camera Joystick Controller Vmix PTZ Console
Model No.︰VK2
Brand Name︰Avicon
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 14 Related Items
Prev34567Next

Product Description

VISCA Pelco PTZ Conference Camera Joystick Controller Vmix Controller USB Vmix Console: USB plug and play, support control Vmix software and camera at the same time. suitable for audio and video recording and broadcasting system

Technical Parameters:

Power supply: DC12V/1000Ma

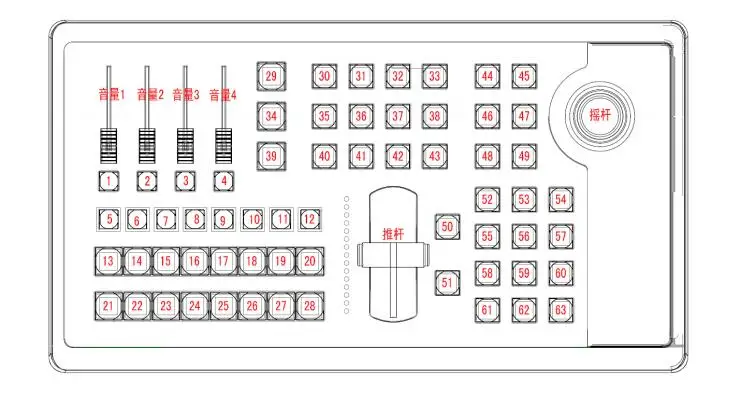

Press: 63 imported two-color buttons
Volume adjustment: 4-channel audio mediation, mute control
Joystick: 1 three-axis joystick
T-type push rod: 1 T-type video putter
Communication interface: USBX1, RS232X1, RS422X1
Baud rate: RS232, 9600, 8, 1, N
Net Weight: 4KG
Gross weight: 6KG

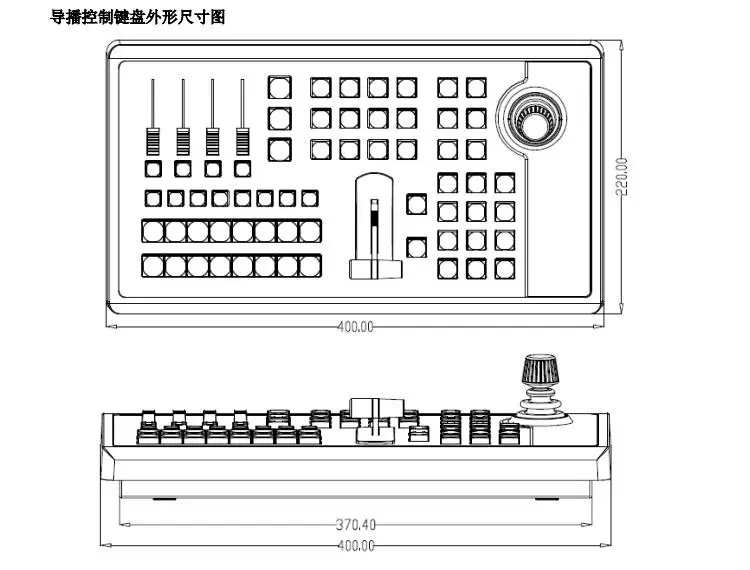

Product size: 400*220*114mm

Outer box size: 47*30*21cm

vk2尺寸xiang参数

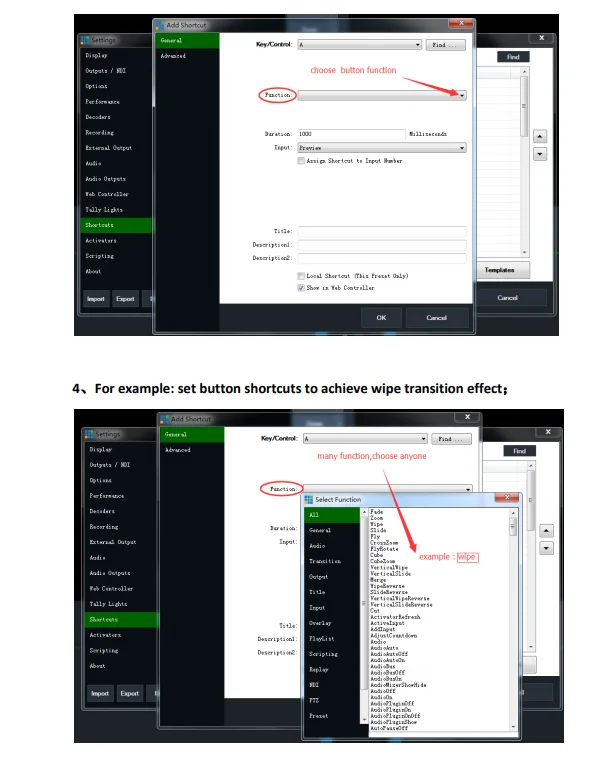

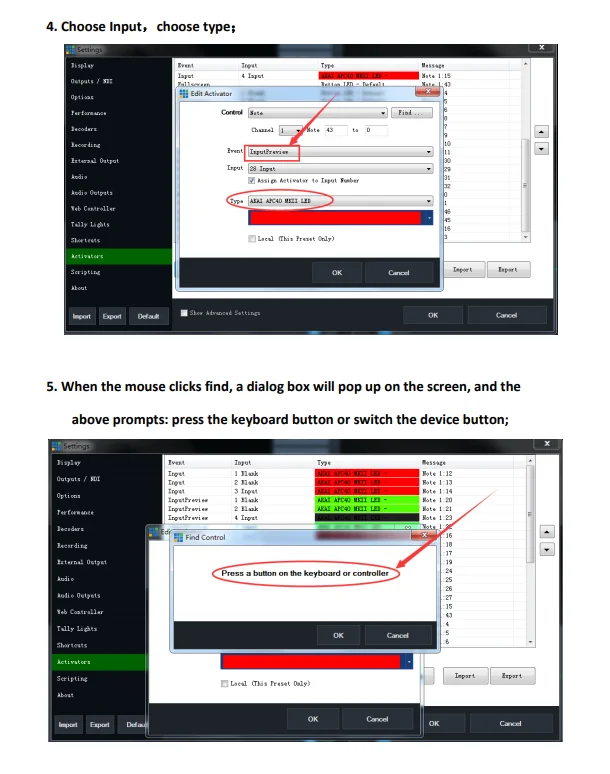

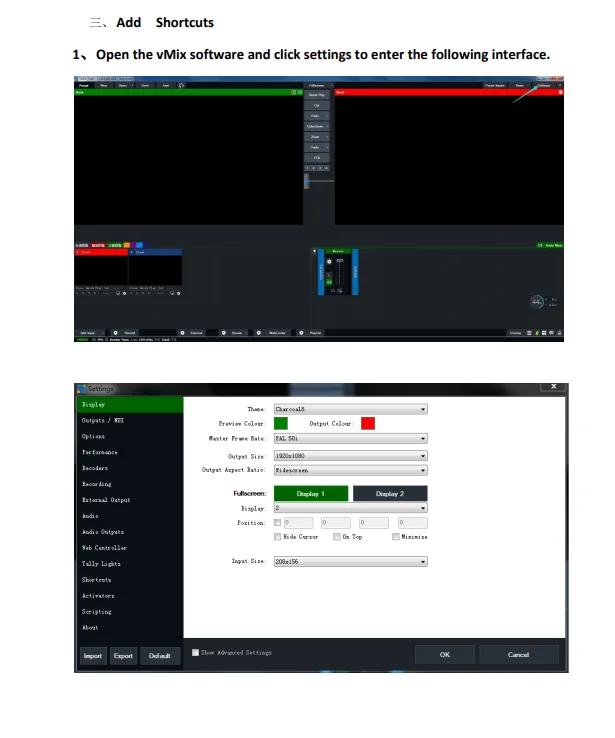

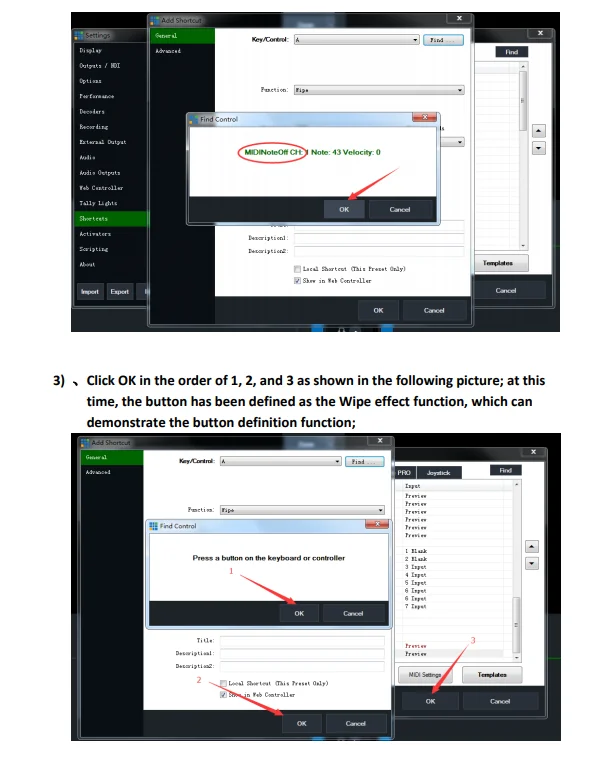

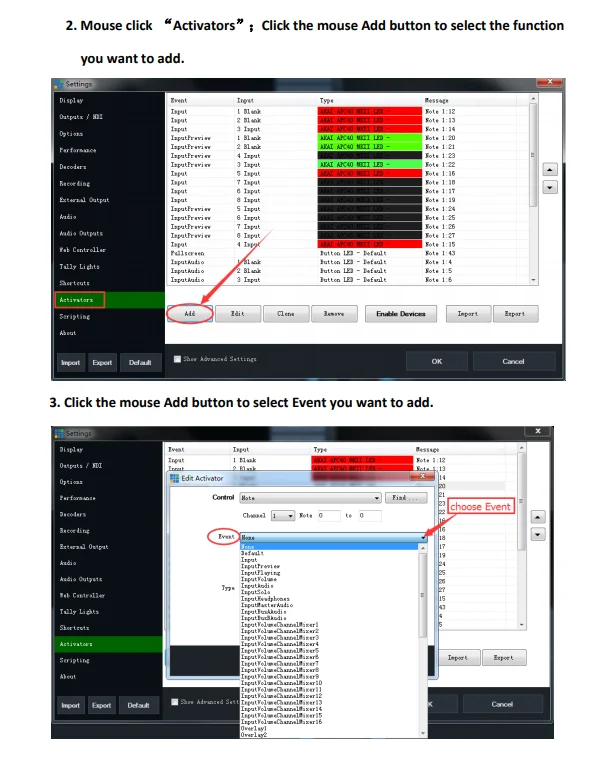

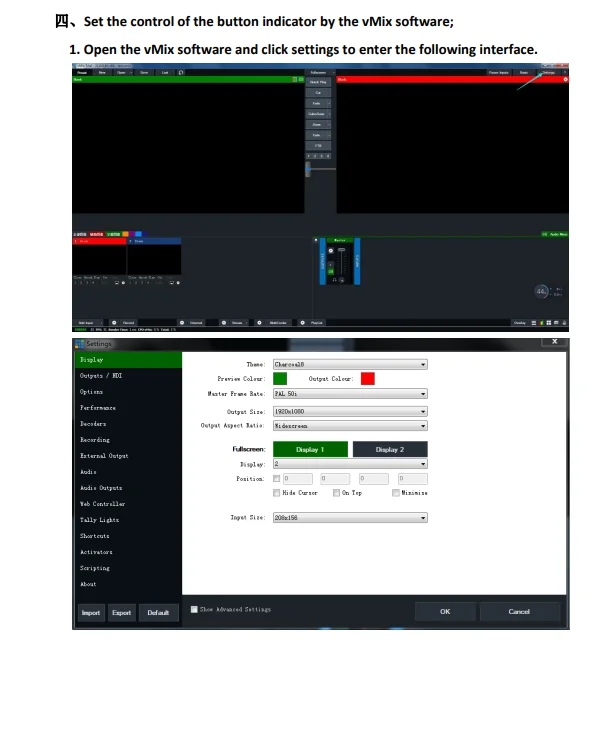

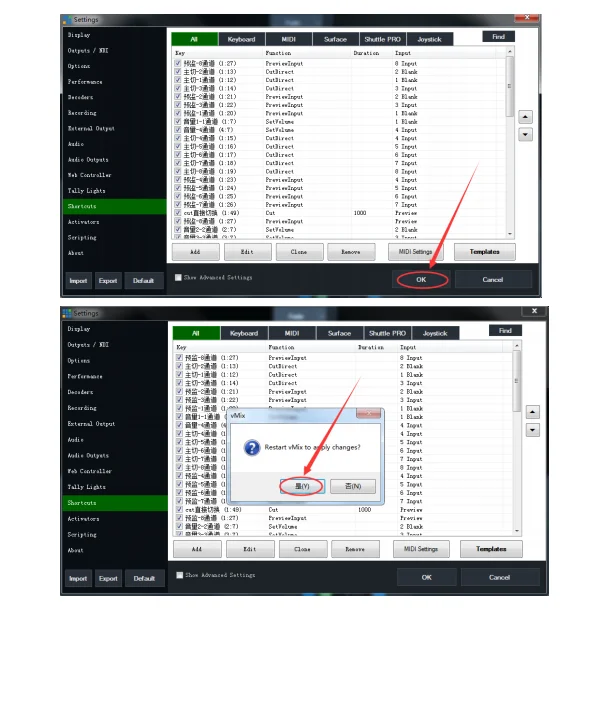

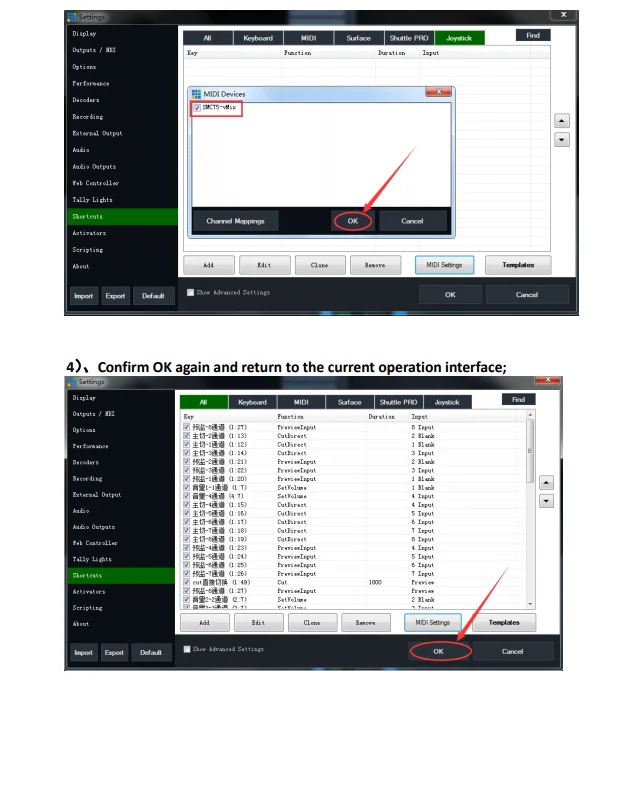

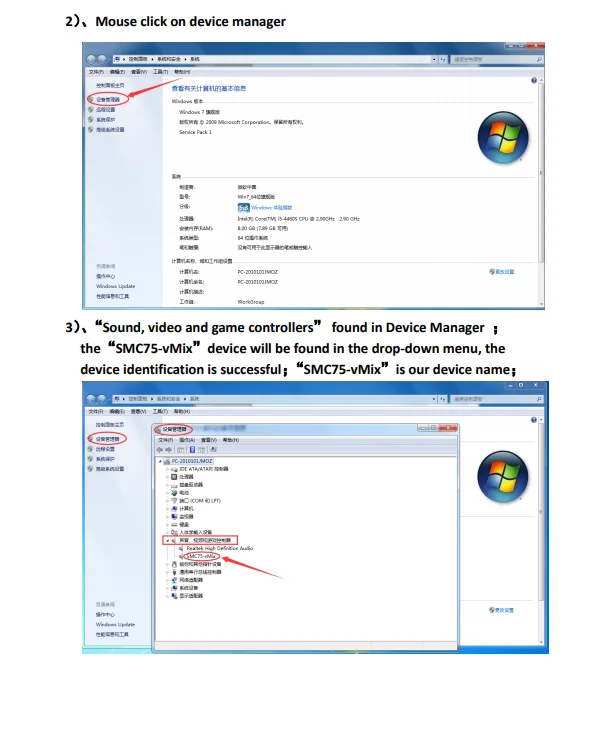

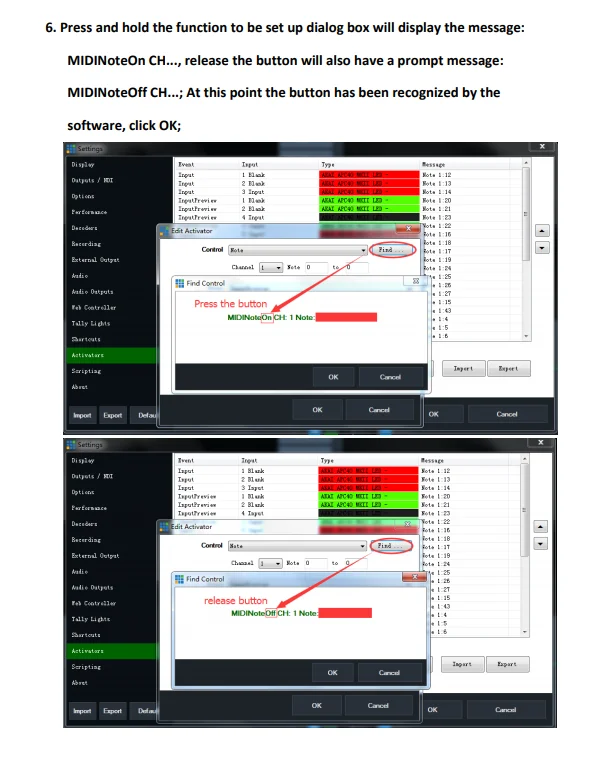

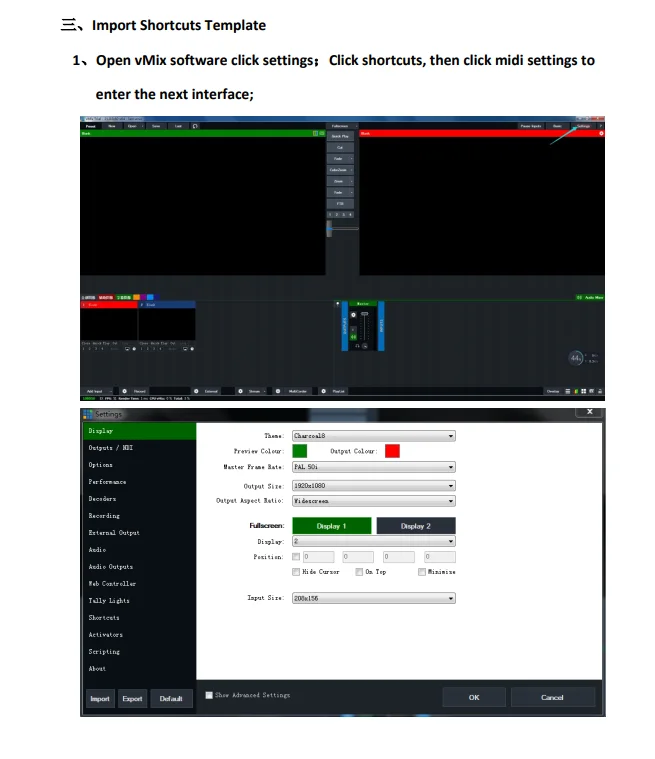

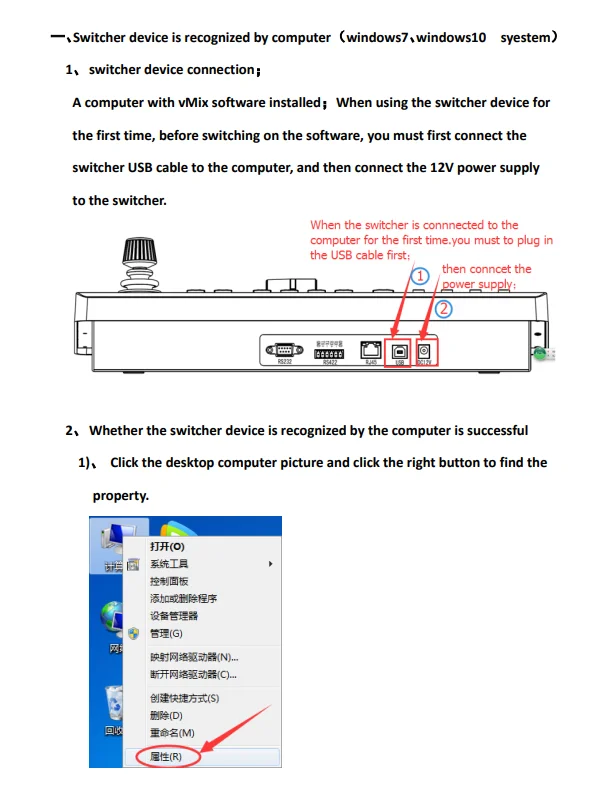

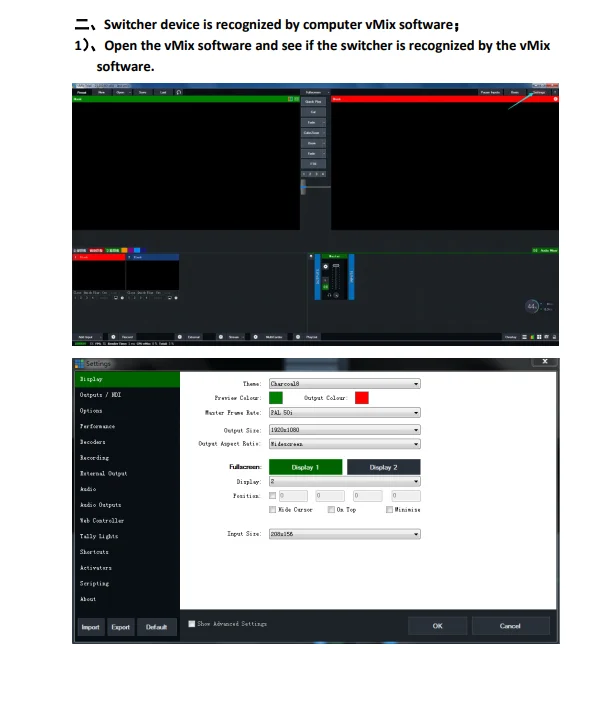

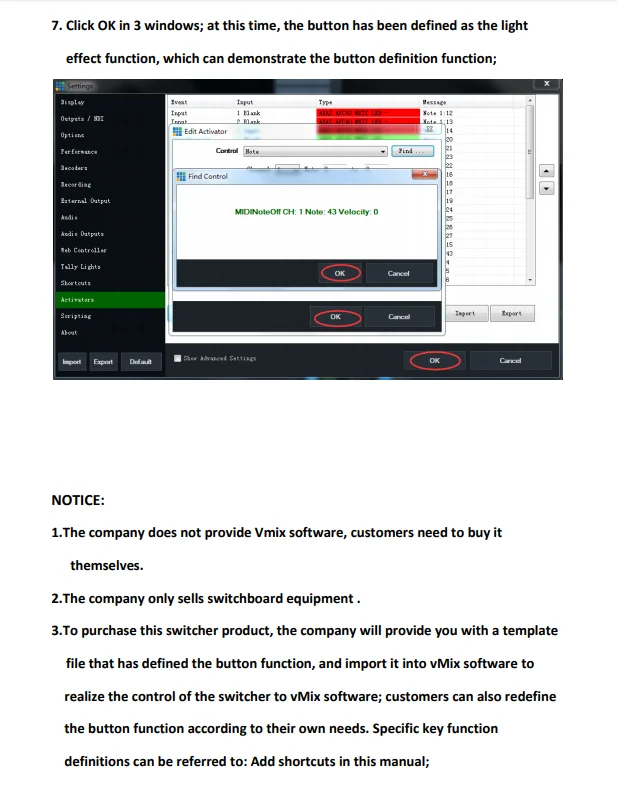

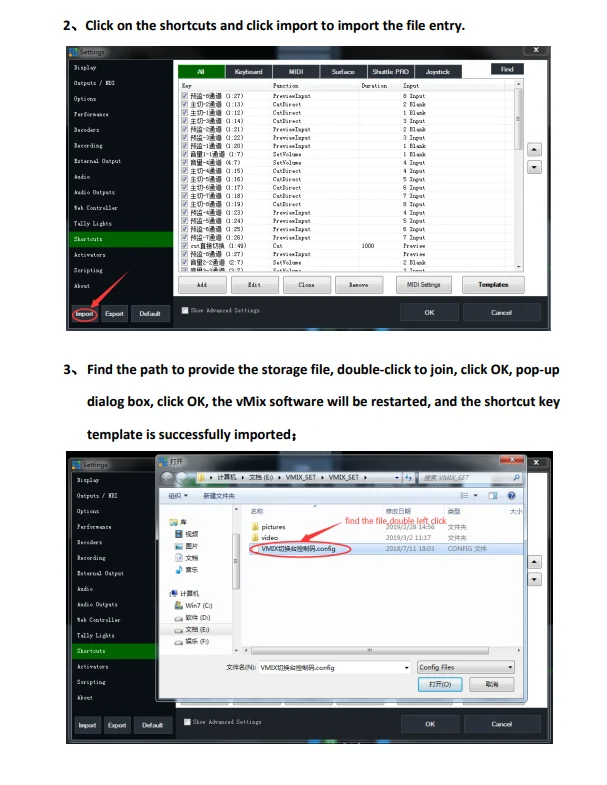

Vmix switch board control panel installation menu

567



891011121314





15161718192021



2223

Payment Terms︰TT/LC/DP/DA
