NDI Video Conference Camera UHD PTZ Camera SDI Live Streaming Camera Broadcastin

  • NDI Video Conference Camera UHD PTZ Camera SDI Live Streaming Camera Broadcastin
  • NDI Video Conference Camera UHD PTZ Camera SDI Live Streaming Camera Broadcastin
  • NDI Video Conference Camera UHD PTZ Camera SDI Live Streaming Camera Broadcastin
  • NDI Video Conference Camera UHD PTZ Camera SDI Live Streaming Camera Broadcastin
  • NDI Video Conference Camera UHD PTZ Camera SDI Live Streaming Camera Broadcastin
Model No.︰VC62N
Brand Name︰Avicon
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 14 Related Items
Prev12345Next

Product Description

Connectivity, creativity, and control of your video is easier than ever using your existing network infrastructure when you implement NDI. Software, computers, and networks are changing the way video is produced, making NDI the most widely adopted and used IP standard in the world. Today, you have compelling new opportunities to engage in visual storytelling within practically any environment.. with Avicon NDI PTZ HD Color Video Conference Camera

Avicon

1080P NDI Camera PTZ SDI Live Streaming Camera Features:

●H.265 Support

The first H.265 encoding support conference video camera in the world, enabling full HD 1080p/60fps video stream by ultra-low bandwidth.

●1080P Full HD

Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.

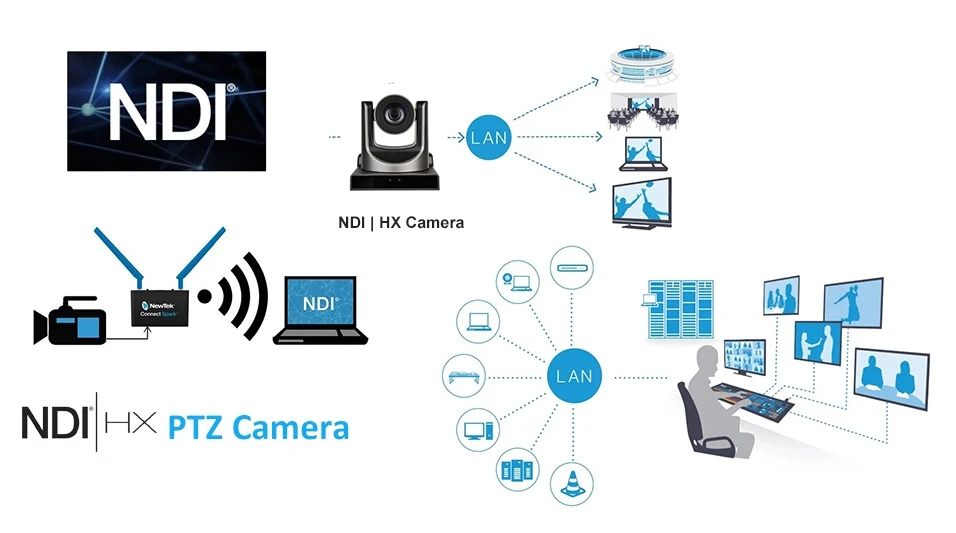

●Supports NDI HX
The camera can connect directly to a NDI® network, utilizing NDI-based video production workflows without additional configuration, reducing cost and set-up time.

●AAC Audio Encoding

Support AAC audio encoding, better sound quality and smaller bandwidth.

●Local Storage

Support local storage module, directly recording to local USB flash disk without NVR.

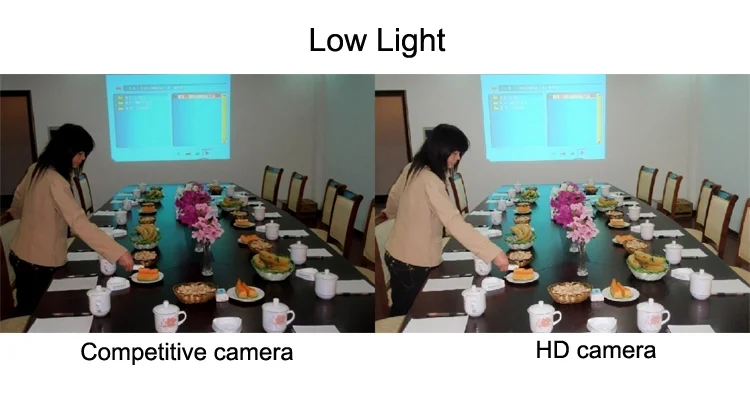

●Low-light

High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.

●Abundant & Perfect Interface

Support HDMI output, 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface.

●12x Optical + 16x Digital Zoom

Use Panasonic high quality super telephoto lens, support 12x optical zoom, and 16x digital zoom (optional).

●Remote Control

Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.

Input/Output Interface

HD Output

1xHDMI: Version 1.3

1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard

SD Output

1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω

Network Interface

1xRJ45: 10M/100M Ethernet Interface

Audio Interface

1-ch: 3.5mm Audio Interface, Line In

USB

1xUSB2.0: Type A female jack

Communication Interface

1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P

1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only

1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P

Power Jack

JEITA type (DC IN 12V)

微信图片_20200805165126微信图片_20200805165154



Payment Terms︰TT/LC/DP/DA
